MS-1ER

MS-1ER

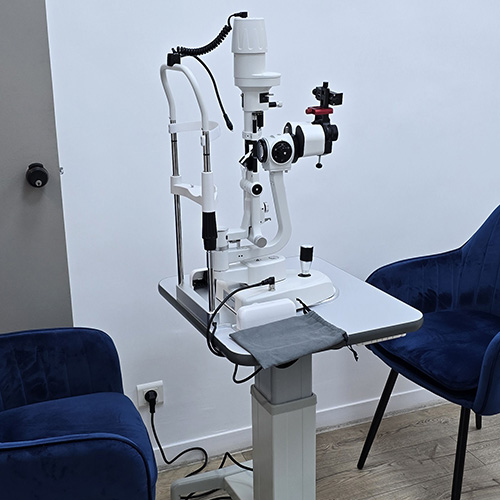

Lampe à fente dotée d’une optique allemande. Grossissement 3 ou 5x.

Caractéristiques

Microscope type Converging
Magnification change way Deflector rod
Eyepiece magnification 10X 16X
Total magnification 10X 16X 25X
Diopter adjustement -6D~+6D
Illumination Three steps (stepless optional)
Slit width 0-14mm continuous
Slit height 1-14mm continuous
Slit angle 0° - 180° Adjustable
Slit inclination angle 5° 10° 15° 20°
Light spot diameter 0.2mm, 1mm, 2mm, 5mm, 10mm, 14mm
Filter Heat absorption, grey, redfree, cobalt blue
Fixation Red LED
Electrical
Illumination Bulb German OSRAM halogen tungsten lamp
Input voltage 110/220V (±10%)
Input power 60VA
Diffuse lens Yes
Preset lens Yes
Laser interface optional
Applanation tonometer interface Yes
